Product Description:
ABC Cable is mainly used in overhead power lines with a rated voltage of 1kV and below, and is suitable for urban power grids, rural electrification, street lighting systems, etc. It can serve as the power supply line from pole-mounted transformers to user incoming lines, and can also be applied in scenarios such as temporary power supply for construction sites and outdoor lighting.
Construction
Phase Conductor: Class 2 Circular compacted stranded Aluminium
Neutral Conductor: Class 2 Circular compacted stranded Aluminium
Insulation: XLPE (Cross-linked polyethylene) Black color,Weather and UV resistant.
Assembly: Cores and the neutral, conductor, and stranded together in a right-hand lay. Additionally, 1, 2, or 3 cores of reduced cross-section can be co-stranded.
Standard
NFC 33-209
Technical Parameters:
| Rated voltage |
kV |
0.6/1 |
| Test voltage |
Veff kV/Hz |
4/50 |
| Laying temperature |
°C |
min. -5 |
| Operating temperature |
°C |
-30 ~ +90 |
| Conductor temperature |
°C |
max. +90 |
| Short-circuit temperature |
°C/s |
max. +250 /5 |
| Bending radius (min.) |
mm |
20 × Ø of cable |
| NUMBER OF CORES X NOMINAL CROSS SECTION |
MAX. CONDUCTOR- RESISTANCE |
MIN. BREAKING LOAD OF CONDUCTOR STRAND |
CURRENT RATING IN THE AIR |
OUTER DIAMETER |
TOTAL WEIGHT |
| MM2 |
OHM/KM |
KN |
A |
MM |
KG/KM |
| 1x54.6 RM + 3x35 RM |
0.630/0.868 |
5.2 |
132 |
25.1 |
615 |
| 1x54.6 RM + 3x35 RM + 1x16 RM |
0.630/0.868/1.910 |
5.2/2.3 |
132/72 |
28.1 |
680 |
| 1x54.6 RM + 3x35 RM + 2x16 RM |
0.630/0.868/1.910 |
5.2/2.3 |
132/72 |
34.3 |
748 |
| 1x54.6 RM + 3x35 RM + 3x16 RM |
0.630/0.868/1.910 |
5.2/2.3 |
132/72 |
35.9 |
814 |
| 1x54.6 RM + 3x35 RM + 1x25 RM |
0.630/0.868/1.200 |
5.2/3.8 |
132/107 |
28.1 |
714 |

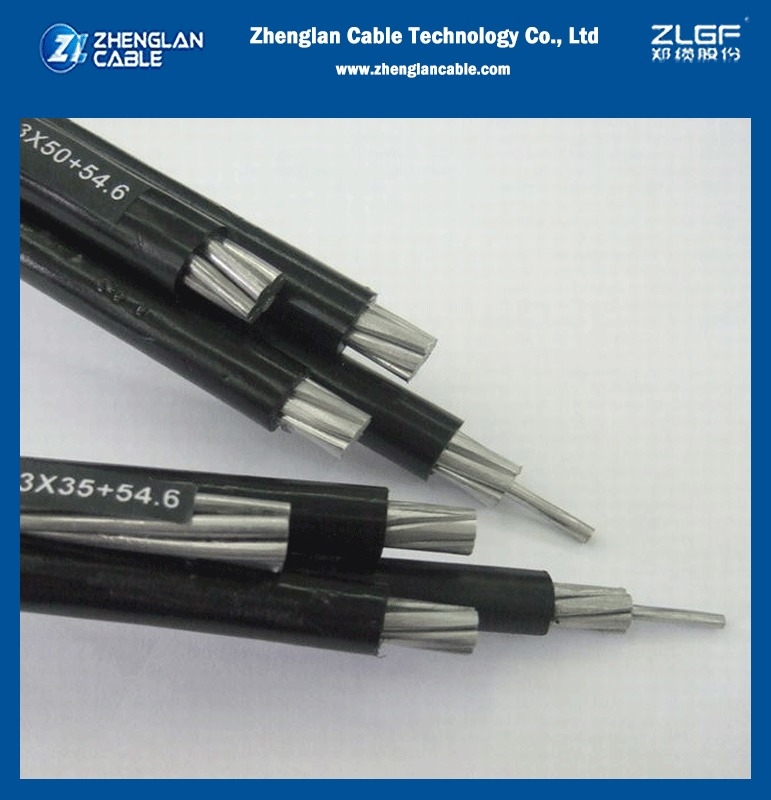

Image:
Factory show:
About us:
Zhenglan Cable Technology Co., Ltd (www(.)zhenglancable(.)com), is CE and ISO approved China cable and wire manufacturer with about 20 years' experience located in Zhengzhou, Henan province, central China.
-
OEM/ODM services provided;
-
Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
-
Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
-
Registered capital of $30 million and factory covers an area of 60,000㎡;
-
Advanced test equipment and procedures, 100% inspection before factory;
-
Enough stocks and the higest efficient shipping time guarranteed;
-
Professional pre-sales and after-sales services provided
FAQ:
Q: What is the brand name of the overhead insulated cable?
A: The brand name of the overhead insulated cable is Zhenglan Cable.
Q: What is the model number of the overhead insulated cable?
A: The model number of the overhead insulated cable is Aerial Bundled Cable.
Q: Where is the overhead insulated cable manufactured?
A: The overhead insulated cable is manufactured in Henan, China.
Q: What certifications does the overhead insulated cable have?
A: The overhead insulated cable is certified with CE, ISO, and CCC.
Q: What is the minimum order quantity for the overhead insulated cable?
A: The minimum order quantity for the overhead insulated cable is 1000 meters.
